> Запчасти Lexus GX > Поиск по каталогу

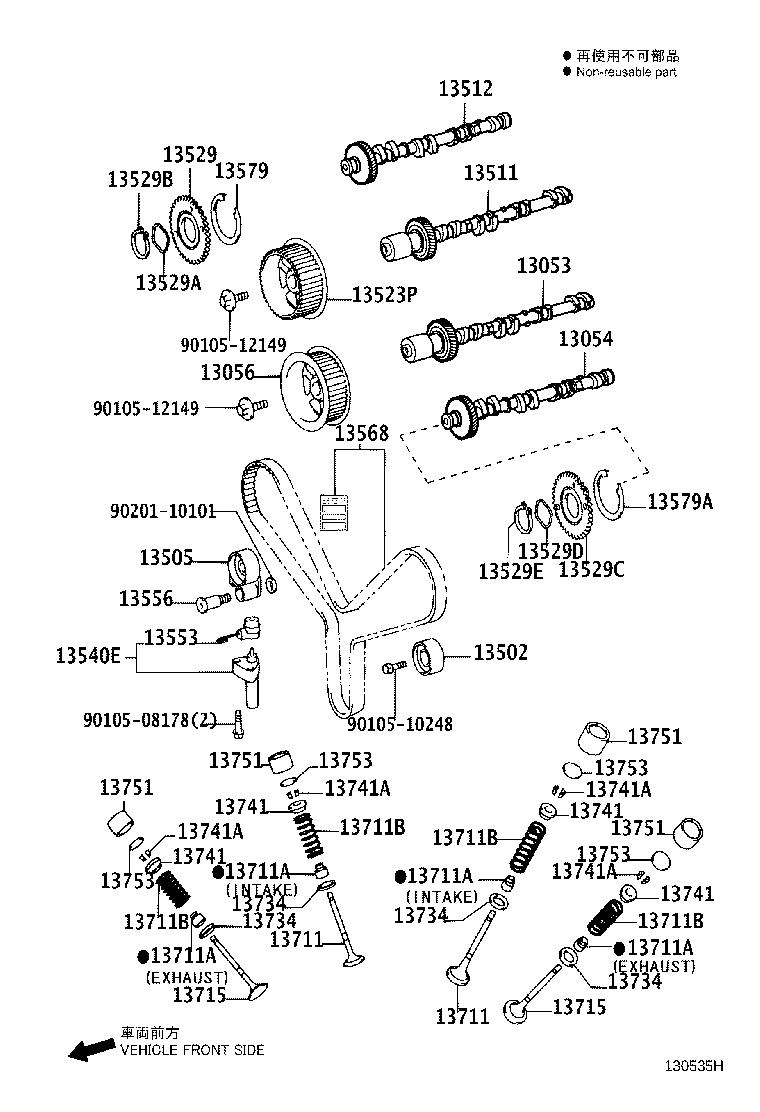

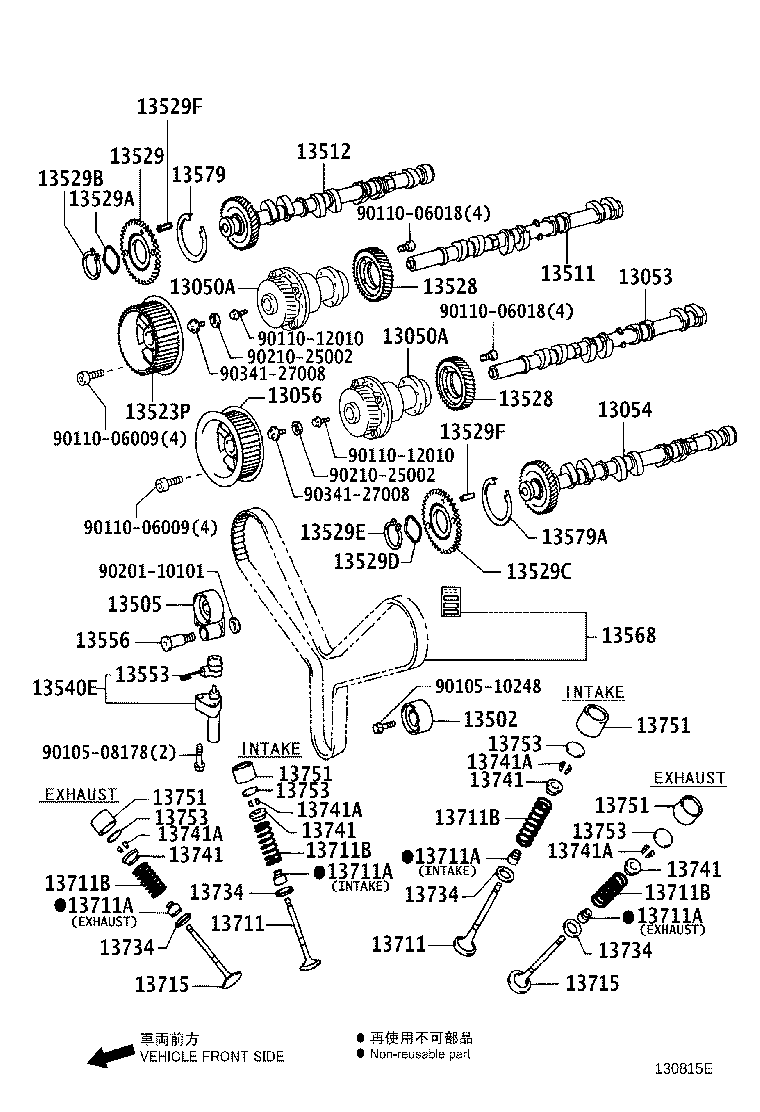

Распредвал, клапаны, ремень LEXUS GX470, 2002/11 - 2009/08, 4,7 литров, 32 клапана, DOHC, EFI, автомат, АКПП, 5 скоростей

Каталог

Америка

Модель

LEXUS GX470

Двигатель

4,7 литров, 32 клапана, DOHC, EFI

Трансмиссия

автомат АКПП, 5 скоростей

Опции

левый руль 5 дверей 244W
  • 1
  • 2
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

13053

CAMSHAFT SUB-ASSY, NO.3

13054

CAMSHAFT SUB-ASSY, NO.4

13056

PULLEY SUB-ASSY, CAMSHAFT TIMING, LH

13502

IDLER SUB-ASSY, TIMING BELT, NO.2

13505

IDLER SUB-ASSY, TIMING BELT, NO.1

13511

CAMSHAFT

13512

CAMSHAFT, NO.2

13523P

PULLEY, CAMSHAFT TIMING

13529

GEAR, CAMSHAFT SUB

13529A

WASHER, WAVE(FOR CAMSHAFT SUB GEAR)

13529B

RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)

13529C

GEAR, CAMSHAFT SUB, NO.3

13529D

WASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3)

13529E

RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3)

13540E

TENSIONER ASSY, TIMING BELT

13553

COVER, CHAIN TENSIONER DUST

13556

SHAFT, TIMING BELT IDLER

13568

BELT, TIMING

13579

WASHER, CAMSHAFT TIMING GEAR BOLT

13579A

WASHER, CAMSHAFT TIMING GEAR BOLT, NO.3

13711

VALVE, INTAKE

13711

VALVE, INTAKE

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711B

SPRING, COMPRESSION(FOR INNER)

13711B

SPRING, COMPRESSION(FOR INNER)

13711B

SPRING, COMPRESSION(FOR INNER)

13711B

SPRING, COMPRESSION(FOR INNER)

13715

VALVE, EXHAUST

13715

VALVE, EXHAUST

13734

SEAT, VALVE SPRING

13734

SEAT, VALVE SPRING

13734

SEAT, VALVE SPRING

13734

SEAT, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13751

LIFTER, VALVE

13751

LIFTER, VALVE

13751

LIFTER, VALVE

13751

LIFTER, VALVE

13753

SHIM, VALVE ADJUSTING

13753

SHIM, VALVE ADJUSTING

13753

SHIM, VALVE ADJUSTING

13753

SHIM, VALVE ADJUSTING

9010508178

Крепеж

9010510248

Крепеж

9010512149

Крепеж

9010512149

Крепеж

9020110101

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

13050A

TUBE ASSY, CAMSHAFT TIMING

13050A

TUBE ASSY, CAMSHAFT TIMING

13053

CAMSHAFT SUB-ASSY, NO.3

13054

CAMSHAFT SUB-ASSY, NO.4

13056

PULLEY SUB-ASSY, CAMSHAFT TIMING, LH

13502

IDLER SUB-ASSY, TIMING BELT, NO.2

13505

IDLER SUB-ASSY, TIMING BELT, NO.1

13511

CAMSHAFT

13512

CAMSHAFT, NO.2

13523P

PULLEY, CAMSHAFT TIMING

13528

GEAR, CAMSHAFT DRIVE

13528

GEAR, CAMSHAFT DRIVE

13529

GEAR, CAMSHAFT SUB

13529A

WASHER, WAVE(FOR CAMSHAFT SUB GEAR)

13529B

RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)

13529C

GEAR, CAMSHAFT SUB, NO.3

13529D

WASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3)

13529E

RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3)

13529F

PIN, STRAIGHT(FOR CAMSHAFT SUB GEAR)

13529F

PIN, STRAIGHT(FOR CAMSHAFT SUB GEAR)

13540E

TENSIONER ASSY, TIMING BELT

13553

COVER, CHAIN TENSIONER DUST

13556

SHAFT, TIMING BELT IDLER

13568

BELT, TIMING

13579

WASHER, CAMSHAFT TIMING GEAR BOLT

13579A

WASHER, CAMSHAFT TIMING GEAR BOLT, NO.3

13711

VALVE, INTAKE

13711

VALVE, INTAKE

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711A

SEAL OR RING, O(FOR VALVE STEM OIL)

13711B

SPRING, COMPRESSION(FOR INNER)

13711B

SPRING, COMPRESSION(FOR INNER)

13711B

SPRING, COMPRESSION(FOR INNER)

13711B

SPRING, COMPRESSION(FOR INNER)

13715

VALVE, EXHAUST

13715

VALVE, EXHAUST

13734

SEAT, VALVE SPRING

13734

SEAT, VALVE SPRING

13734

SEAT, VALVE SPRING

13734

SEAT, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13751

LIFTER, VALVE

13751

LIFTER, VALVE

13751

LIFTER, VALVE

13751

LIFTER, VALVE

13753

SHIM, VALVE ADJUSTING

13753

SHIM, VALVE ADJUSTING

13753

SHIM, VALVE ADJUSTING

13753

SHIM, VALVE ADJUSTING

9010508178

Крепеж

9010510248

Крепеж

9011006009

Крепеж

9011006009

Крепеж

9011006018

Крепеж

9011006018

Крепеж

9011012010

Крепеж

9011012010

Крепеж

9020110101

Крепеж

9021025002

Крепеж

9021025002

Крепеж

9034127008

Крепеж

9034127008

Крепеж
