> Запчасти Lexus LS > Поиск по каталогу

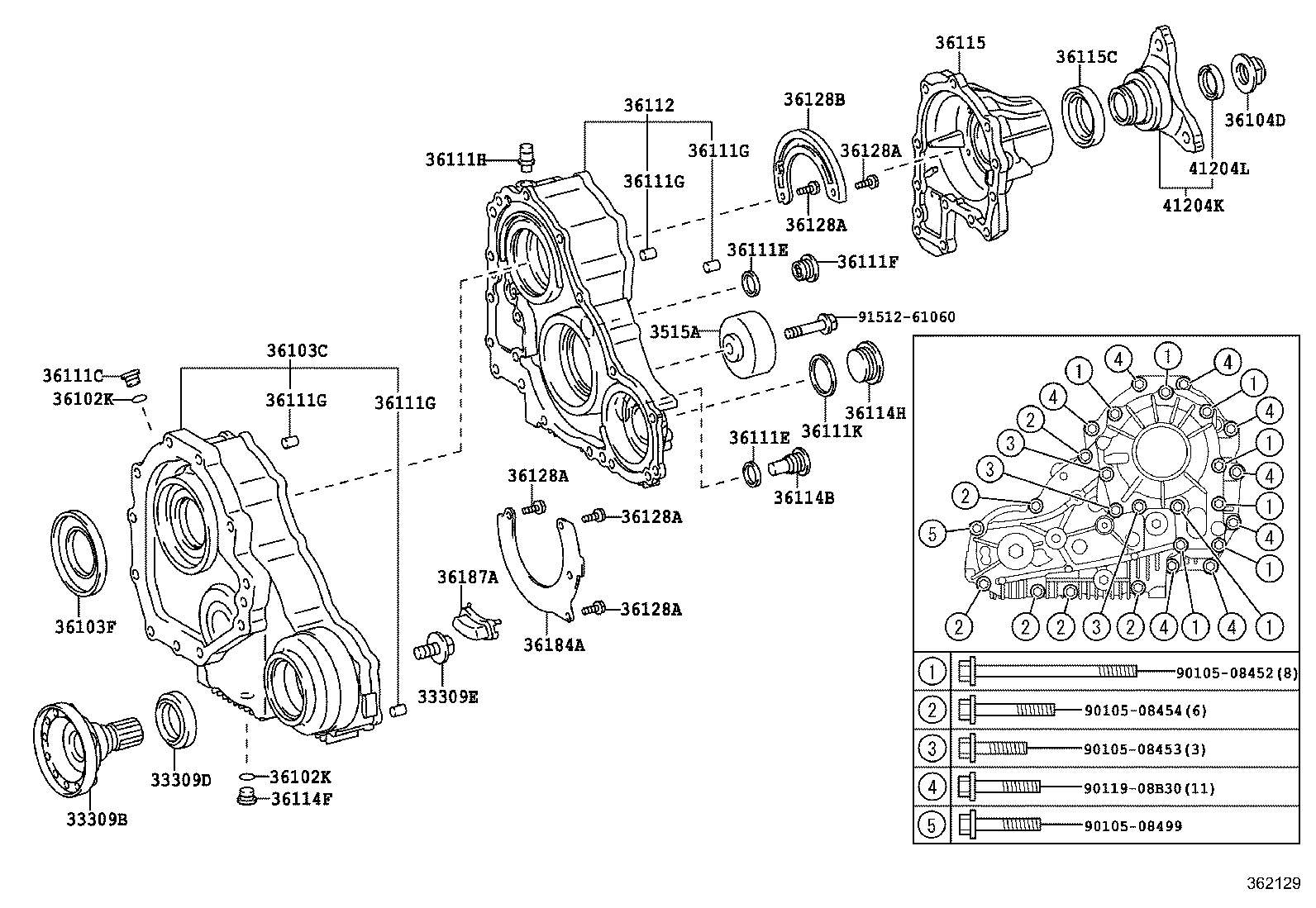

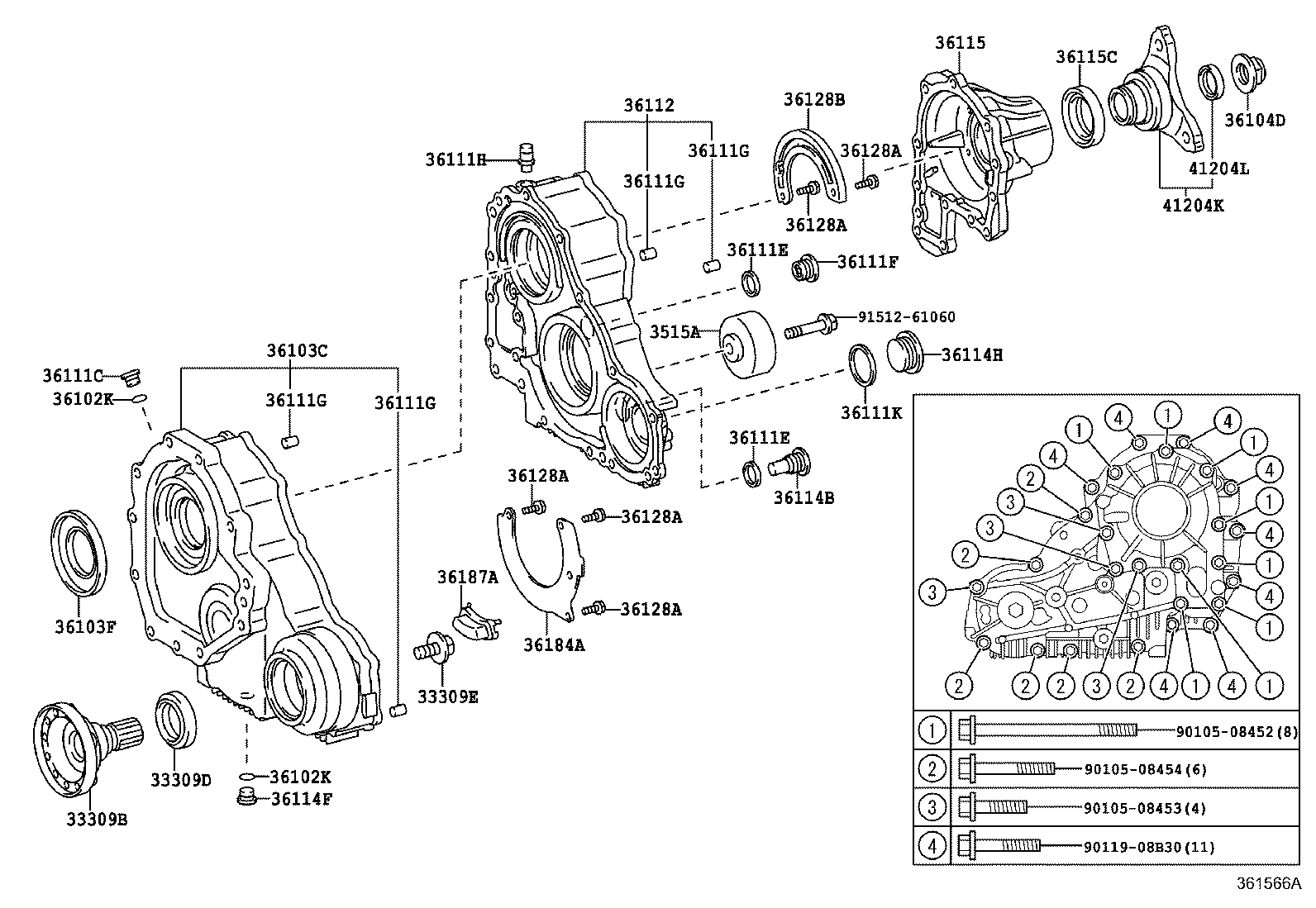

Раздаточная коробка и сальники LEXUS LS460/460L, 2012/09 - 9999/99, 4,6 литра, 32 клапана DOHC, EFI, автомат

Каталог

Европа

Модель

LEXUS LS460/460L

Двигатель

4,6 литра, 32 клапана DOHC, EFI

Трансмиссия

автомат

Опции

левый руль двигатель с прямым впрыском топлива Европа 561W
  • 1
  • 2
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

33309B

FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

33309D

SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

33309E

BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

3515A

DAMPER, TRANSMISSION MASS

36102K

RING, O

36102K

RING, O

36103C

CASE, TRANSFER, FRONT

36103F

SEAL, TYPE T OIL (FOR TRANSFER FRONT CASE)

36104D

NUT (FOR TRANSFER OUTPUT SHAFT)

36111C

PLUG (FOR TRANSFER CASE)

36111E

GASKET (FOR TRANSFER CASE)

36111E

GASKET (FOR TRANSFER CASE)

36111F

PLUG (FOR TRANSFER CASE)

36111G

PIN, STRAIGHT (FOR TRANSFER CASE)

36111G

PIN, STRAIGHT (FOR TRANSFER CASE)

36111G

PIN, STRAIGHT (FOR TRANSFER CASE)

36111G

PIN, STRAIGHT (FOR TRANSFER CASE)

36111H

PLUG, BREATHER (FOR TRANSFER CASE)

36111K

GASKET (FOR TRANSFER CASE)

36112

CASE, TRANSFER, REAR

36114B

PLUG, NO.1 (FOR TRANSFER CASE)

36114F

PLUG (FOR TRANSFER DRAIN)

36114H

PLUG, NO.2 (FOR TRANSFER CASE)

36115

HOUSING, TRANSFER EXTENSION

36115C

SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

36128A

BOLT (FOR BREATHER OIL DEFLECTOR)

36128A

BOLT (FOR BREATHER OIL DEFLECTOR)

36128A

BOLT (FOR BREATHER OIL DEFLECTOR)

36128A

BOLT (FOR BREATHER OIL DEFLECTOR)

36128A

BOLT (FOR BREATHER OIL DEFLECTOR)

36128B

DEFLECTOR, BREATHER OIL

36184A

SEPARATOR, TRANSFER OIL

36187A

STRAINR, TRANSFER OIL, NO.1

41204K

FLANGE SUB-ASSY, DRIVE PINION COMPANION

41204L

SEAL, TYPE V OIL (FOR DRIVE PINION COMPANION FLANGE)

9010508452

Крепеж

9010508453

Крепеж

9010508454

Крепеж

9011908B30

Крепеж

9151261060

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

33309B

FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

33309D

SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

33309E

BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

3515A

DAMPER, TRANSMISSION MASS

36102K

RING, O

36102K

RING, O

36103C

CASE, TRANSFER, FRONT

36103F

SEAL, TYPE T OIL (FOR TRANSFER FRONT CASE)

36104D

NUT (FOR TRANSFER OUTPUT SHAFT)

36111C

PLUG (FOR TRANSFER CASE)

36111E

GASKET (FOR TRANSFER CASE)

36111E

GASKET (FOR TRANSFER CASE)

36111F

PLUG (FOR TRANSFER CASE)

36111G

PIN, STRAIGHT (FOR TRANSFER CASE)

36111G

PIN, STRAIGHT (FOR TRANSFER CASE)

36111G

PIN, STRAIGHT (FOR TRANSFER CASE)

36111G

PIN, STRAIGHT (FOR TRANSFER CASE)

36111H

PLUG, BREATHER (FOR TRANSFER CASE)

36111K

GASKET (FOR TRANSFER CASE)

36112

CASE, TRANSFER, REAR

36114B

PLUG, NO.1 (FOR TRANSFER CASE)

36114F

PLUG (FOR TRANSFER DRAIN)

36114H

PLUG, NO.2 (FOR TRANSFER CASE)

36115

HOUSING, TRANSFER EXTENSION

36115C

SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

36128A

BOLT (FOR BREATHER OIL DEFLECTOR)

36128A

BOLT (FOR BREATHER OIL DEFLECTOR)

36128A

BOLT (FOR BREATHER OIL DEFLECTOR)

36128A

BOLT (FOR BREATHER OIL DEFLECTOR)

36128A

BOLT (FOR BREATHER OIL DEFLECTOR)

36128B

DEFLECTOR, BREATHER OIL

36184A

SEPARATOR, TRANSFER OIL

36187A

STRAINR, TRANSFER OIL, NO.1

41204K

FLANGE SUB-ASSY, DRIVE PINION COMPANION

41204L

SEAL, TYPE V OIL (FOR DRIVE PINION COMPANION FLANGE)

9010508452

Крепеж

9010508453

Крепеж

9010508454

Крепеж

9010508499

Крепеж

9011908B30

Крепеж

9151261060

Крепеж
